OptiMate 4 Battery Optimiser

Diagnoses, recovers, charges, checks & maintains safely

Product Description

A truly unique diagnostic battery optimizer for 12V lead-acid batteries (sealed maintenance-free, gel, or filler caps) up to 50Ah.

Like all OptiMate models before it, the microprocessor controlled OptiMate 4 can save neglected batteries, but the OptiMate 4 is even more effective, with a new dual-stage RECOVERY + TURBO RECOVERY desulfating action. For neglected deep-discharged batteries the RECOVERY mode engages automatically, while the TURBO RECOVERY mode engages for more severely neglected batteries.

Like all other OptiMates, the OptiMate 4 then charges the battery, verifies that the battery is as fully charged as its basic state of health allows, and then checks for & detects dead battery cells.

• Maximum output current increased to 0,8A without increasing energy consumption
• 48 hour time limit on stages up to the first of the cyclic tests for battery drain to avoid wasting time and energy on batteries with a shorted-out cell.

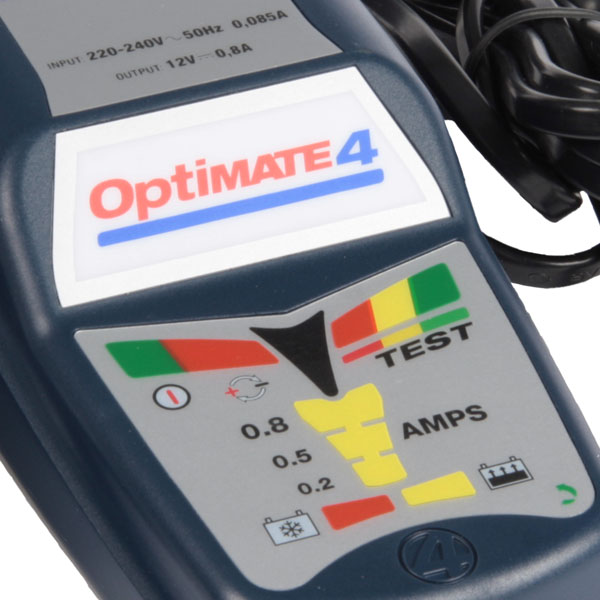

• 19 possible LED indications displayed on 10 LEDs on the stunning new control panel
• 5 possible results of the cyclic hourly tests for power drain /retention are displayed on a combination of green, yellow & red TEST LEDs
• IP64 weatherproof sealed enclosure with built-in mounting option (replaceable if damaged for example by over-tightening a fixing screw)
• New cable bushings avoid insulation stress in ultra-cold temperatures

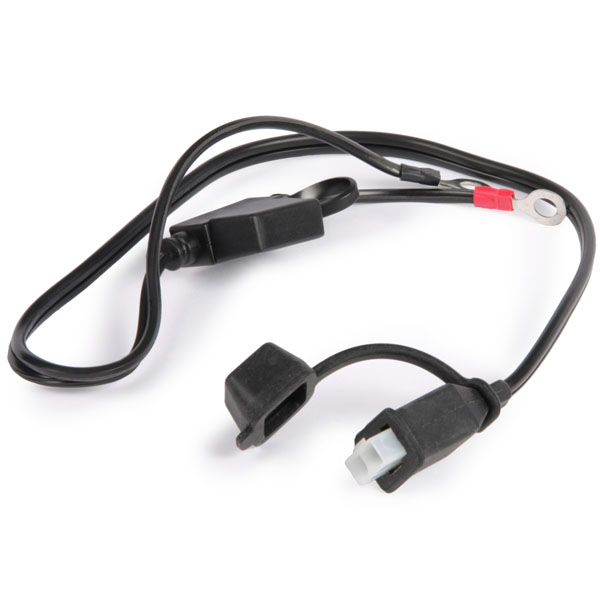

• New SAE weatherproof connections
• But, the most important attribute of the OptiMate 4 is the safe, optimal maintenance of your battery during long term storage
