TecMate OptiMate Solar
Weatherproof outdoor solar battery charger with smart charge and maintain featuresView full details
Customer Reviews for TecMate OptiMate Solar
Waiting for winter
Its summer & I'm riding regularly. The test will be winter when there's less light & I'll be relying on the panel to maintain the battery. I've noticed on overcast days it takes a while to show it's charging. Great service from Sportsbikeshop & Optimate who gave superb advice on connecting to the socket fitted to the bike.Read more
It's been sunny since I received the solar panel, so it's perhaps been unrealistically ideal conditions in which to test it, but it's done a great job of keeping my bike charged during lockdown.Read more
Works amazingly well, Optimate quality too
This works better than I could have hoped. It restored from well run down my wife and daughter's cars in two days of charging, and all "free" electricity, amazing. Should fire up a bike battery in no time. The read-out shows battery condition and charging progress plus an approximation of the light-conditions related charging efficiency. For me it works best with the 01 battery lead connected to the battery in place, no need to remove the battery), so you plug into that in just seconds. The croc clips would be better for a battery once removed from the vehicle. All in all, a top product and high quality too, being from Optimate/TecMate.Read more
Bought to supplement my Optimate 3. During the riding season I am unable to access electric sockets so a solar panel is brilliant. It is easy to set up and works a treat.Read more
Excellent Solar Charger
Great bit of kit to maintain my batteries. I bought the 20w version as it is larger and more effective on winter days. Simple to use. Definitely recommend. Works well.Read more
Did not work
After following all instructions and fitting the solar panel on my garage roof, it did not work, despite two days of strong winter sun. Alarm bells rang on opening the package as the sticky tape securing the box had been cut.Read more
Simple to install. Easy to operate. Slightly longer cable from charger to bike would help though (only get 1 metre).Read more
excellent solar charger
I ordered the 20w version as I live in Scotland and the sun is in short supply at this time of year. This solar charger brought my bike battery up from half empty (orange) to full power (green) in just 2 days - its been in monitor mode ever since. I did needed an extension lead to fit it on my garage roof as the cable supplied is not that long. I'm very pleased with it - Another quality product from Optimate.Read more
TecMate OptiMate Solar
- Ideal for 12V lead-acid batteries including AGM (MF), Standard, GEL and AGM spiral cell
- Program control 4 stages, fully automatic
- Charge time limit, safe to leave connected for seasonal maintenance
- Maintain / test cycles: Keeps battery at 100% charged when not in use
- Enclosure fully sealed (IP54)
- Cable length 2m from panel to charger; 1m from charger to output connector.
- Included accessories: 01 weatherproof permanent lead; 04 battery clamp lead
- Operation temperature range: From -20ºC <-> 40°C
- Ratings / approvals: CE, NRTL (UL & CSA), SAA (AU & NZ)
- Warranty: 3 Years
The new OptiMate Solar range features a smart charger-monitor which provides battery status information when charging and when the battery is at rest overnight. The OptiMate Solar TM-522 2 Amp smart charger-controller has a 4-LED panel for comprehensive information on charge progress and battery status.
OptiMate Solar charge kits are fully automatic. Mount the panel in a suitable location to receive maximum sunlight, hook up the charger-monitor to the battery and walk away. No more battery problems.
When the panel receives sun, the SOLAR CHARGE LED blinks confirming solar power is being delivered and one of the three battery status LEDs (SAVE, CHARGE, MAINTAIN) indicates charge progress. OptiMate Solar converts low solar energy to a high pulse charge which improves solar charge efficiency. When night falls or if the smart charger-monitor senses no solar power is being delivered it changes into a battery monitor with one of the three charge status lights now indicating battery status every three seconds.

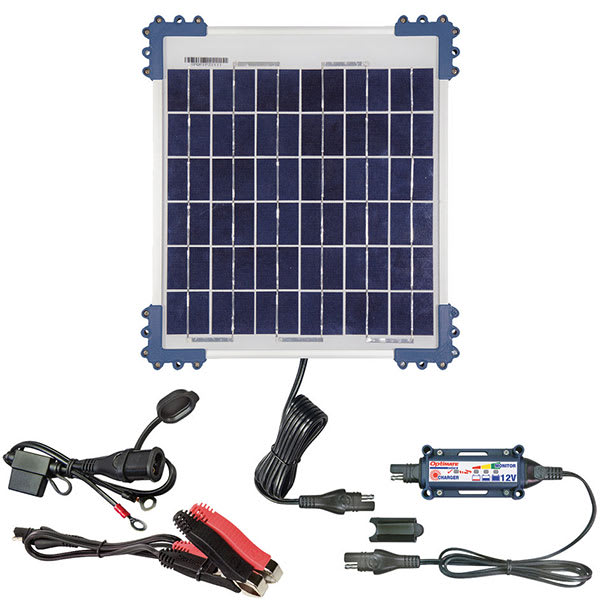

The weatherproof solar panel includes corner mounts for easy wall or roof mounting. Each kit includes a high intensity poly crystalline panel with a 2m power cable, an OptiMate O-1 weatherproof battery lead, an OptiMate O-4 battery clamp lead and the outdoor rated OptiMate smart charger-controller (TM-522) with a 1m charge cable.
|Dimensions||32 x 30 x 3cm||45 x 36 x 3cm||68 x 43 x 3cm||68 x 65 x 3cm||78 x 69 x 3cm|
|Ideal For batteries||2-240Ah||2-240Ah||2-240Ah||15Ah+||20Ah+|
|Max current pulse||2A||2A||7A||7A||7A|
TecMate was founded on 1st September 1994 in Belgium, to continue the development and manufacturing of professional battery charging, battery testing and engine troubleshooting and tuning tools aimed at the power sport, marine, automotive, light aircraft and industrial equipment industries. TecMate's professional charger knowledge and experience led to the design of the OptiMate battery saving charging method in 1995, with the purpose of saving AGM, GEL and STD lead-acid batteries that have stopped working simply due to neglect. OptiMate now also charges, tests and maintains lithium (LiFePo4) batteries.See all TecMate products…
Questions and Answers
Which extension lead do I need from solar panel to charger, SAE63 or SAE73?January 13, 2020
Either leads can be used, the difference is the length - SAE63 is 1.8m SAE73 is 4.6m
Which solar panel for 12 volt pleaseDecember 5, 2019
We can confirm that all options are suitable for 12V batteries.
